Broadband
Antennas

Low SWR Over 8 to 1 Range

Disk and Cone are Fabricated of 12
Radials

Model
Pipe
Size
Weight
Frequency
Range
D-40A
1 1/4"
36 lbs.
40 to 320 MHz
D-50A
1 1/4"
34 lbs.
50 to 400 MHz
D-60A
1 1/4"
32 lbs.
60 to 480 MHz
D-100A
1"
12 lbs.
100 to 800 MHz
D-100B
1"
21 lbs.
100 to 800 MHz
D-150A
1"
4 lbs.
150 to 1200 MHz
D-150B
1"
7 lbs.
150 to 1200 MHz
D-300A
1"
4 lbs.
300 to 2400 MHz
D-300B
1"
6 lbs.
300 to 2400 MHz

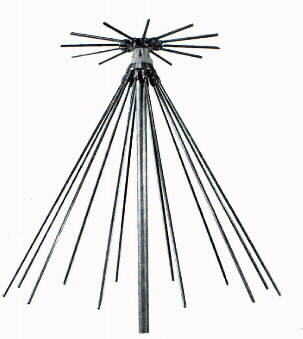

D-150
(D-300 Has Solid Disc)
